2000 HP

Clever, compact comfort

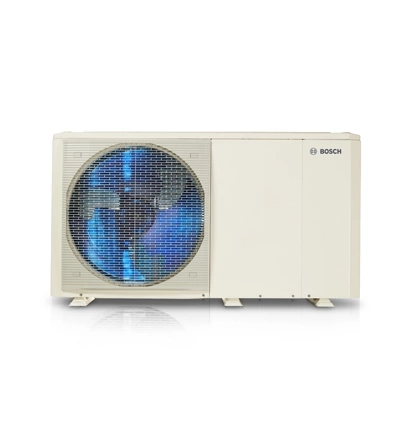

The CS2000 AWF is an all-in-one full monobloc heat pump solution, built to speed up and simplify installation. With a space-saving footprint, it’s perfect for smaller outdoor spaces at just 2m2, suitable for renovations and new builds alike.

Why install the Compress 2000 AWF?

  • Guaranteed - 7 years peace of mind
  • Easy installation - With all-in-one monobloc design
  • Flexible outputs - 4-30kW with cascading options

Dimensions:

  • Small chassis - H x 717mm W x 1295mm D x 400mm
  • Medium chassis - H x 864mm W x 1385mm D x 445mm
  • Large chassis - H x 1557mm W x 1120mm D x 400mm

Features & Benefits

  • Quick and easy to install - The CS2000 AWF is an all-in-one full monobloc solution, with only one outdoor unit and no indoor unit required, making it easy for installation.
  • A heat pump for all - The CS2000 AWF is a monobloc unit, which means an F-Gas qualification is not needed for installation.
  • Flexible outputs - With outputs ranging from 4kW - 30kW and with the ability to cascade up to 6 units, the CS2000 AWF suits a range of homes.
  • All under control - with the HMI Master Controller, a integrated temperature sensor which can be used as a zone thermostat
  • R32 Refrigerant - The CS2000 AWF holds an environmentally friendly and safe R32 refrigerant with a GWP of 675, delivering high performance
  • Flow temperatures up to 65° - The CS2000 AWF is a high flow temperature heat pump, making it the perfect solution for new build properties and renovations.

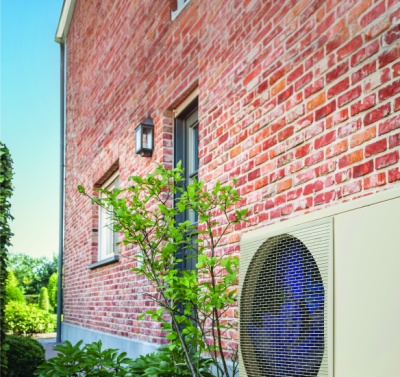

2000 HP situ

ERP Labels

ERP Datasheets

Tech Details

CS2000AWF 6 RS

  • Energy Efficiency Class (35°C): A+++
  • Energy Efficiency Class (55°C): A++
  • Coefficient of Performance (COP) at +7 / W35: 4.95
  • Sound pressure level at a distance of 1 m dB(A): 44
  • Sound Power Level Outdoors (dBA): 58

Manuals & Brochures
